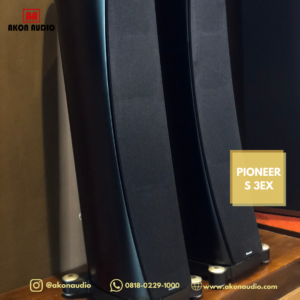

Pioneer is delighted to introduce the EX series: the Pioneer S3EX Floor Standing Speakers are the new Reference high-end floor-standing speaker, based on professional audio industry technology found in the world’s most renowned TAD studio monitoring speakers. Designed in France-with engineering contributions from Japan and the USA-it owes many technical specifications to the TAD M1, considered by audio professionals as one of the best speakers in the world.
Tuned to the highest standards to ensure that the EX Series meets the definitive international standards for professional audio equipment, the speakers have been fine-tuned at the legendary AIR Studios. The quality seal of the temple of immaculate sound, located in London, is proof of the extraordinary fidelity, precision and capacity of our EX Series speakers.
Exclusive technology is of course the norm on the Pioneer S3EX Speakers, the midrange and tweeter drivers use the exclusive CST (Coherent Source Transducer) technology – developed by TAD to achieve superior directivity control at all frequencies. The tweeters, featuring Beryllium or Ceramic Graphite diaphragms, are mounted in the centre of the magnesium midrange drivers. The result is a phenomenally smooth and coherent sonic experience.
The Pioneer S3EX Speakers are the final link in the complex process of creating immaculate audio quality. EX Series speakers draw on the unparalleled design and construction expertise of the Pioneer brand TAD. Set up in 1975 as a separate branch specialising in speaker technology for professional applications, TAD produces monitor speakers that are found in many of the world’s most famous recording studios and concert halls. The EX Series brings the exclusive professional technology of TAD speaker’s right into your home.
The elegantly styled speaker cabinets are available in a choice of two rich finishes: real beech (high-gloss) or dark teak veneer (satin). Beneath their sleek surface, the housings are designed and crafted for absolute stability: multi-layered, laminated MDF at a thickness of up to 100 mm gives EX Series speakers the weight and inertia to resist vibration and distortion even at the utmost limits.
- Reference high-end floor-standing speaker.
- 3-way. 160 W.
- Concentric arrangement of tweeter and midrange speaker units.
- Ceramic Graphite tweeter for ultra-high frequencies (100 kHz).
- Magnesium midrange cone.
- Woofers with Linear Drive Magnetic Circuits.
- Magnetically shielded.
- AIR Studios sound tuning
Product Specifications
- Dimensions (HxWxD) in mm
1224x350x541
- Finish
Beech or Dark Teak
- Maximum Power Handling
160 Watts
- Magnetically Shielded
Yes
- Weight
48kgs
- Sensitivity
88.5dB @2.83V at 1 Metre
- Impedance
6 Ohms
- Frequency range
30 to 100kHz
